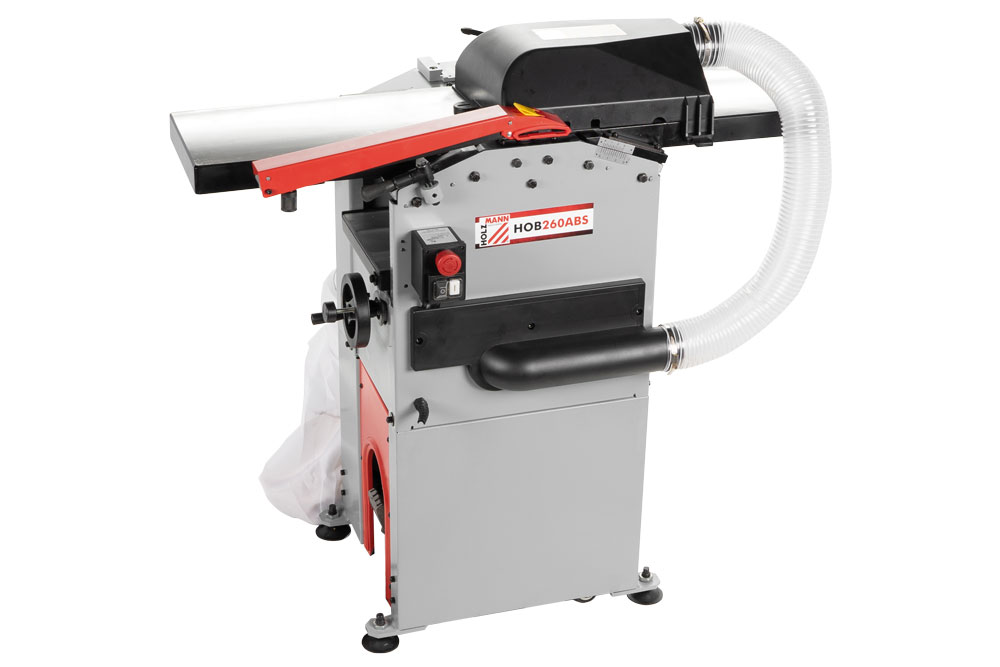

HOLZMANN MASCHINEN HOB260ABS_400V σύνθετο πλάνη - ξεχονδριστήρας

- Επαγγελματικών προδιαγραφών Αυστριακής προέλευσης.

highlights:
- combined planer thicknesser with integrated dust collector
- easy and fast transformation to thicknessing function

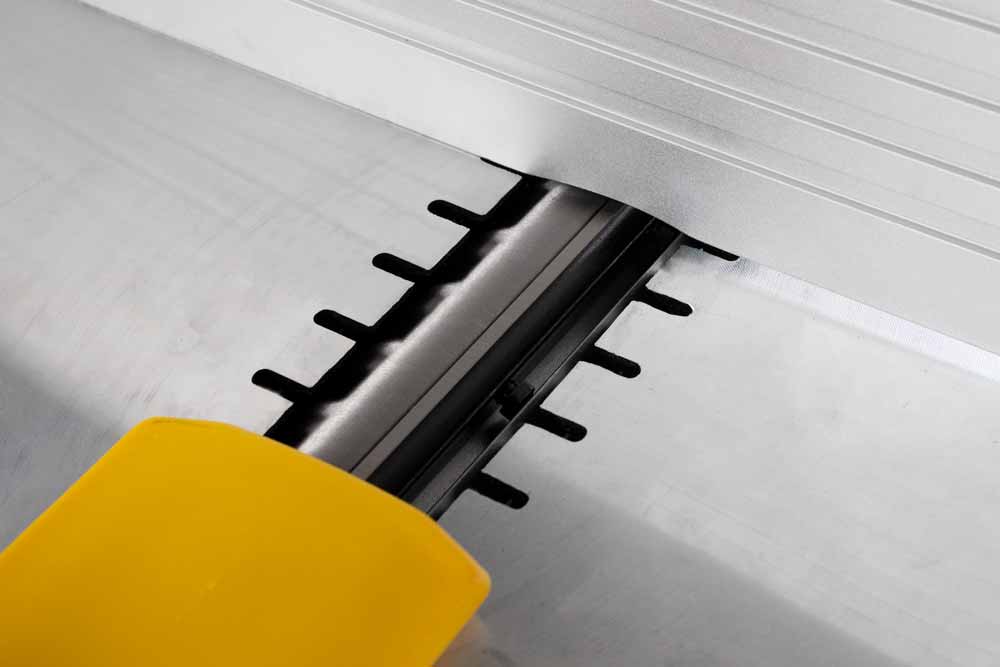

- noise absorbing slots in the planing tables
- dust collector bag enables comfortable bag exchange
- solid aluminium pressure cast table
- tiltable aluminium planing fence
- thicknessing infeed drive can be switched off
- included in delivery: integrated dust collector, stand, planning knives, dust bag

technical details:
planing:
planing table size in mm: 1050x260
fence tilt: 90° -45°
planer fence in mm: 610x110
max. thicknessing cutting depth in mm: 3

motor data:
motor power s1 in W: 1500
motor power s6 in W: 2100
feed speed: 8
voltage: 400V

measurements:
suction port in mm: 80
workpiece measurements:
max. workpiece thickness in mm: 160

thicknessing:
cutting depth in mm: 2
table size in mm: 480x254

general planing:
shaft diameter in mm: 55
shaft speed in min-1: 6700
cutter knives amount: 2

dust collectors:
suction performance in m³/h: 270

volume level and vibration:
thicknesser table height in mm: 890

weight:
gross weight in kg: 88
net weight in kg: 86

packaging:
length in mm: 1.160
width in mm: 590
height in mm: 600

general data:
EAN code: 9120039905174
