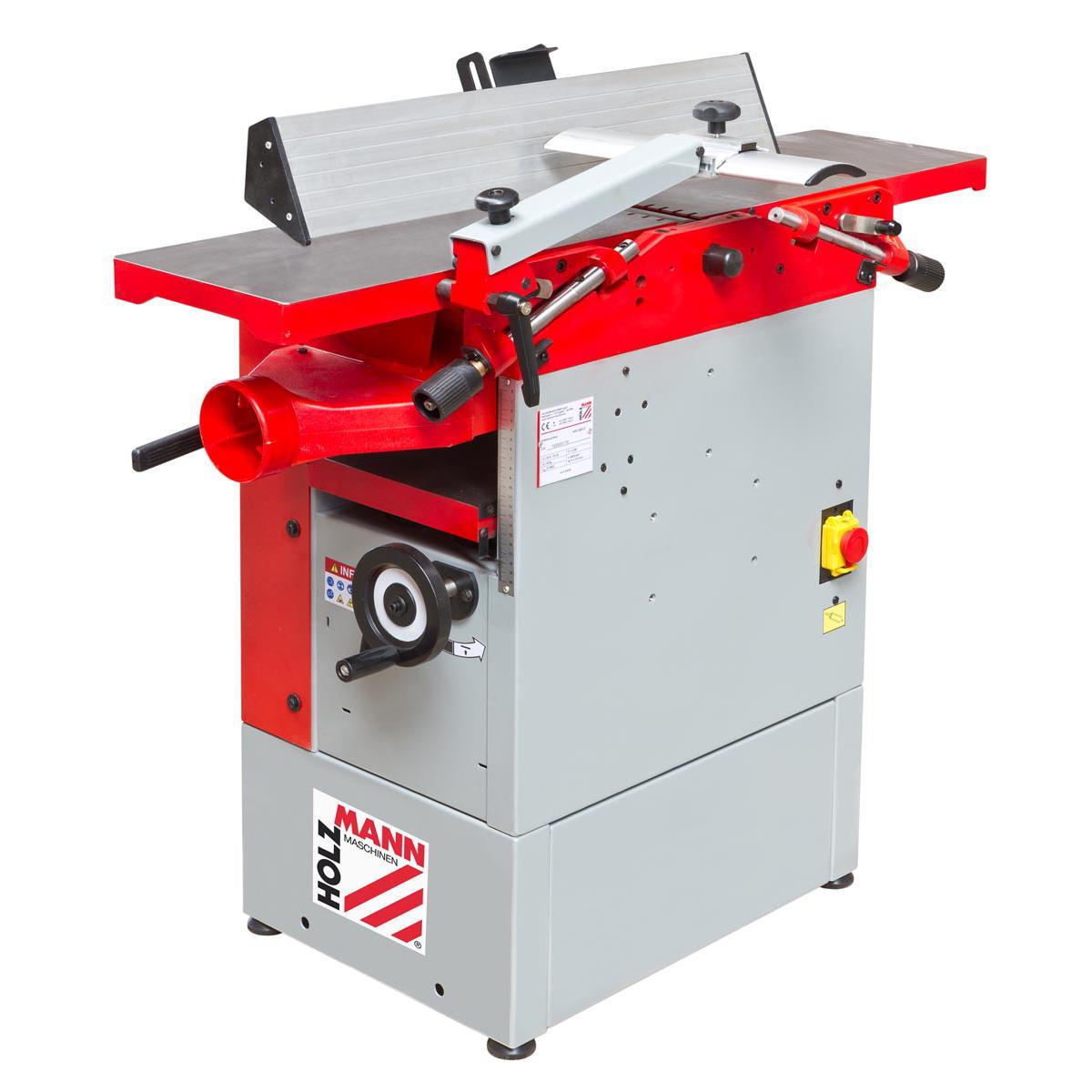

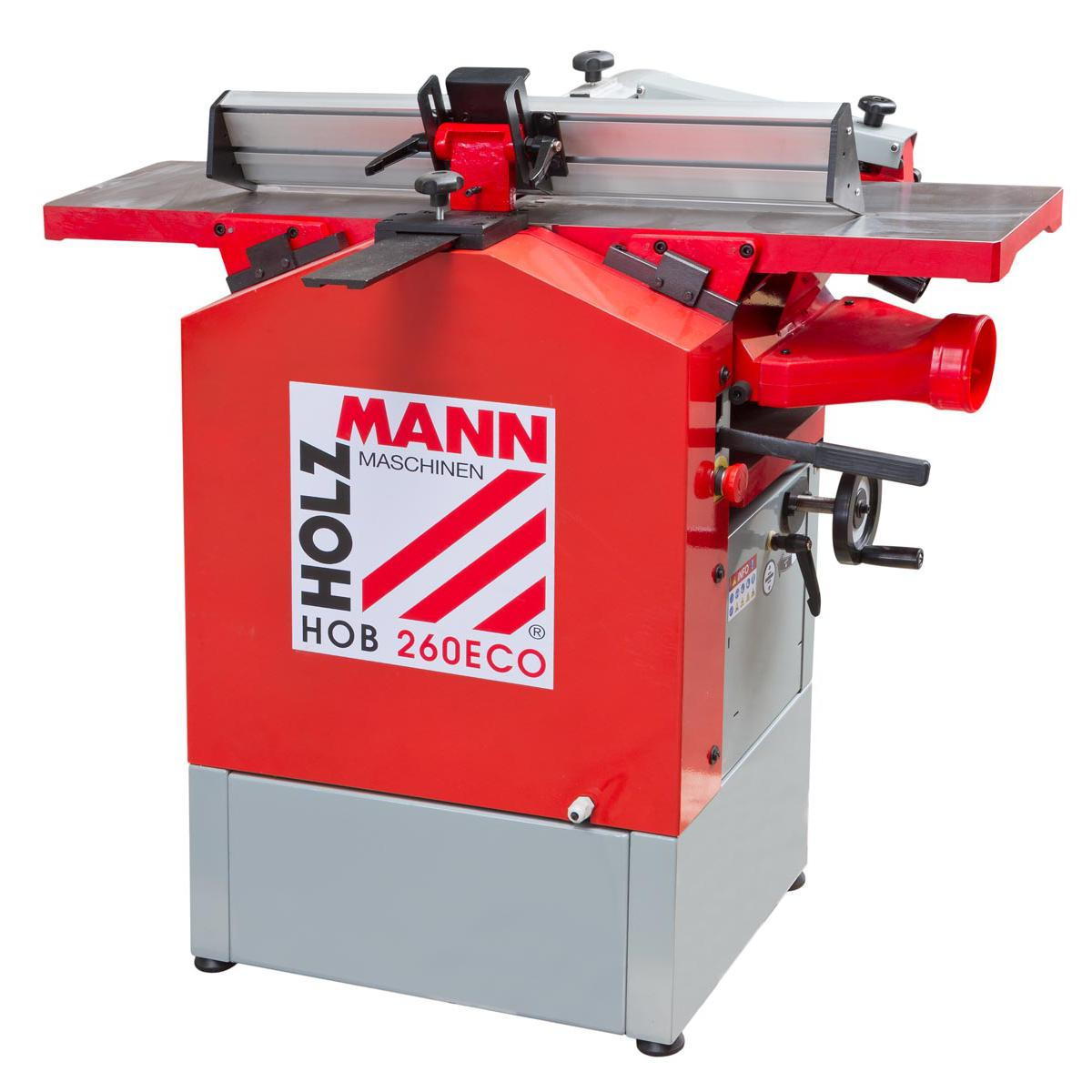

HOLZMANN MASCHINEN HOB260ECO_230V σύνθετο πλάνη - ξεχονδριστήρας

- Επαγγελματικών προδιαγραφών Αυστριακής προέλευσης.

highlights:
- solid cabinet base unit ensures high stability

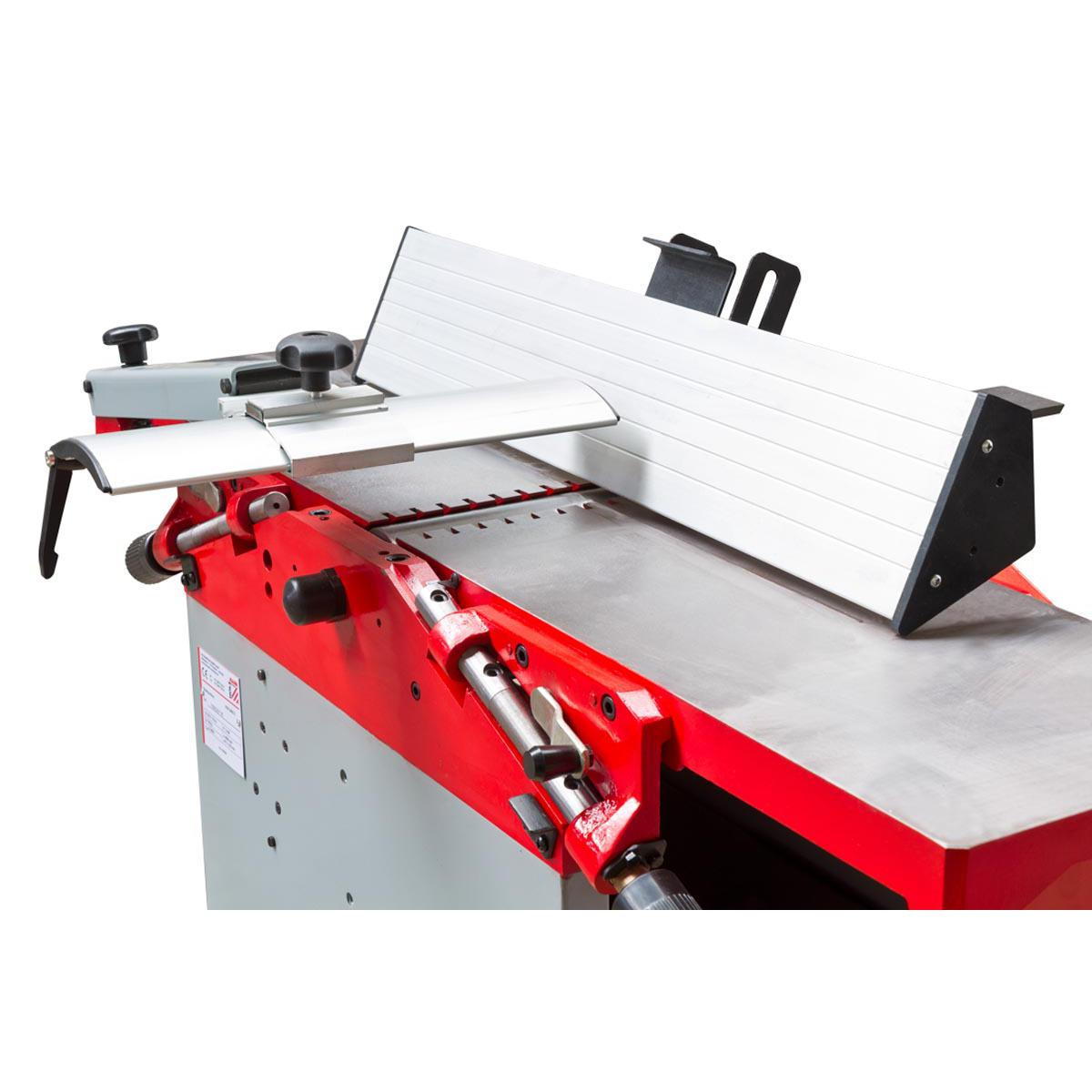

- adjustable aluminium fence, 3-knife cutterblock
- collateral pivoting grey cast iron tables enable
- comfortable thicknessing
- dust collector plug allows a dust and chip-free working environment
- included in delivery: resharpenable planer knives (3pcs) (250x30x3mm), fence, operating tools, shaft cover

technical details:
planing:
max. thicknessing cutting depth in mm: 5
planer fence in mm: 700x130
fence tilt: 90-45°
planing table size in mm: 1085x256

motor data:
motor power s1 in W: 1500
motor power s6 in W: 2100
feed speed: 5.5
voltage: 230V / 50Hz

measurements:
total dimensions in mm: 1084x472x1050
table height in mm: 850
suction port in mm: 100
workpiece measurements:
min. workpiece thickness in mm: 6
max. workpiece thickness in mm: 195

thicknessing:
table size in mm: 245x590
cutting depth in mm: 2.5

general planing:
shaft diameter in mm: 75
shaft speed in min-1: 4000
cutter knives amount: 3

volume level and vibration:
sound power level in dB(A): 93

weight:
net weight in kg: 140
gross weight in kg: 165

packaging:
height in mm: 750
width in mm: 490
length in mm: 1.150

general data:
EAN code: 9120058373749
